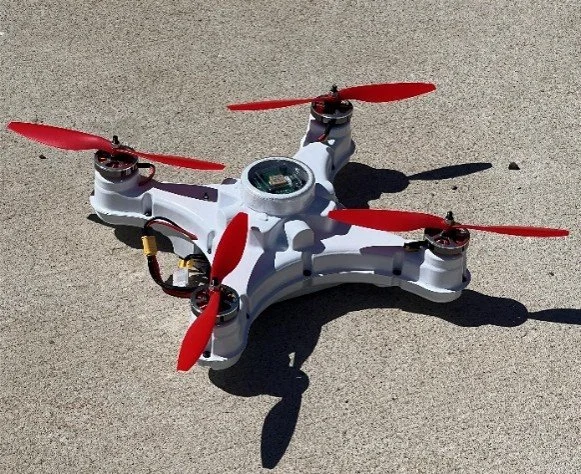

A white quadcopter drone with four red propellers on a concrete surface

UxV/35 X-Wing Target UAS

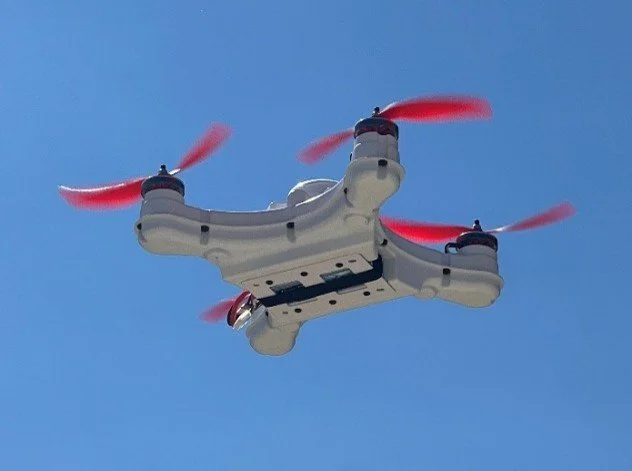

A white quadcopter drone with red-tipped propellers flying against a blue sky.

  • The X-Wing UAS system utilizes the common Kairos Autonomi UxV/35 flight stack installed into a durable and replaceable Kydex frame.

  • Inexpensive UAS system mean to be used as target practice, attritable testing scenarios, or FPV IRL flight missions.

  • ~20 min flight time (battery dependent) with the ability to be flown Line of Sight or First Person View using Kairos FPV camera.

  • Modular design and construction enables the X-Wing to be easily repaired in the field or modified with optional UxV/35 modules to fit a wide array of mission requirements.

  • Can be configured/reconfigured using open-source flight software, such as MissionPlanner.

Specifications

Dimensions

Weight

Flight Time

20+ minutes (w/4000 mAh battery)

FPV Camera

Kairos UxV/35 Camera & Transmitter (COTS Options may be installed)

Max Speed

Ops Ceiling

66 ft/s (20 m/s)

1000 feet (305 m) AGL

Wind Speed

13 in (33 cm) Wide / 13 in (33 cm) Long / 5 in (12.7 cm) Tall

2.3 lbs (1 kg)

30 mph (48.8 kmh)
