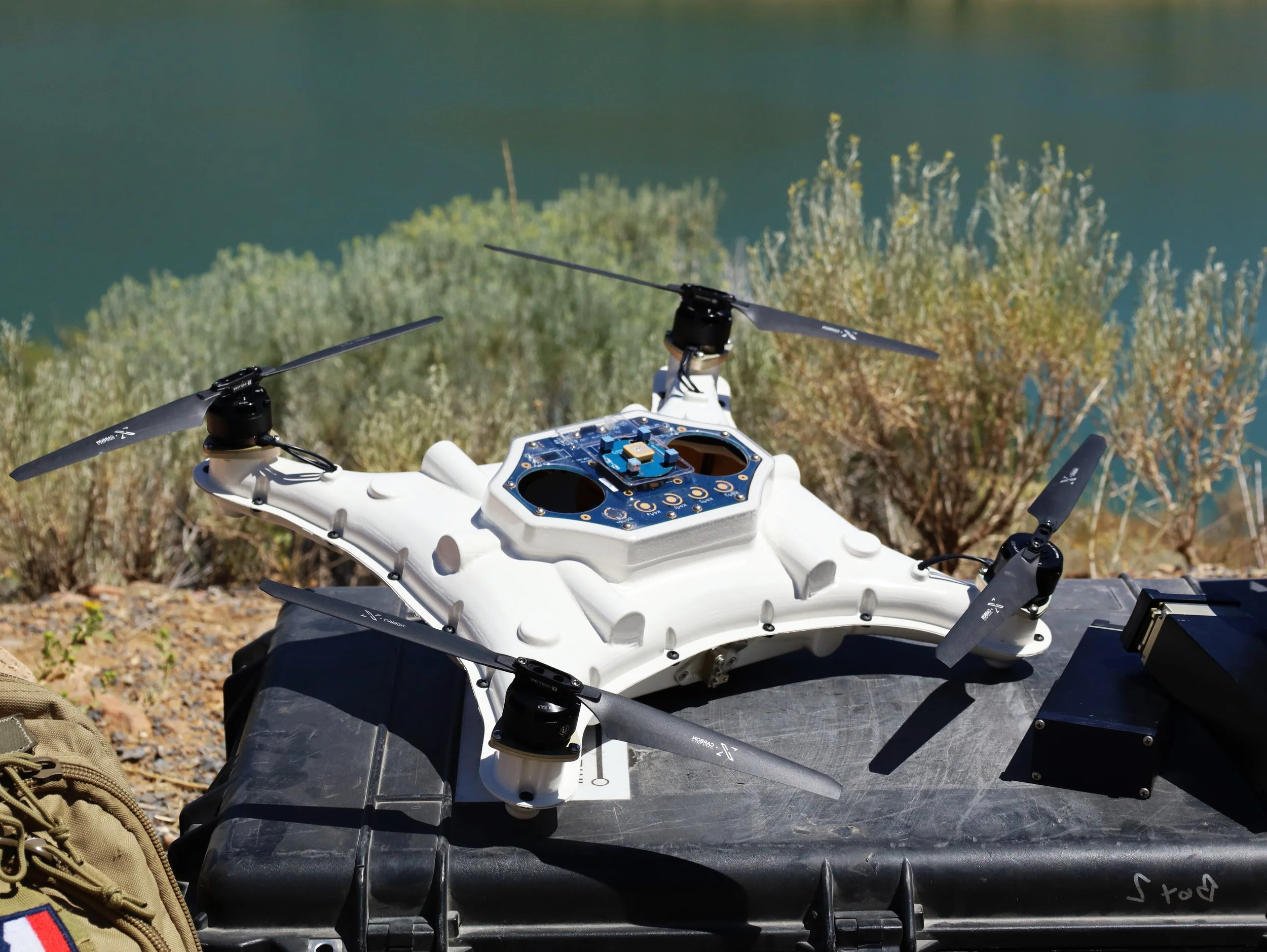

A white drone with four propellers on a black case near a body of water and dry bushes in the background.

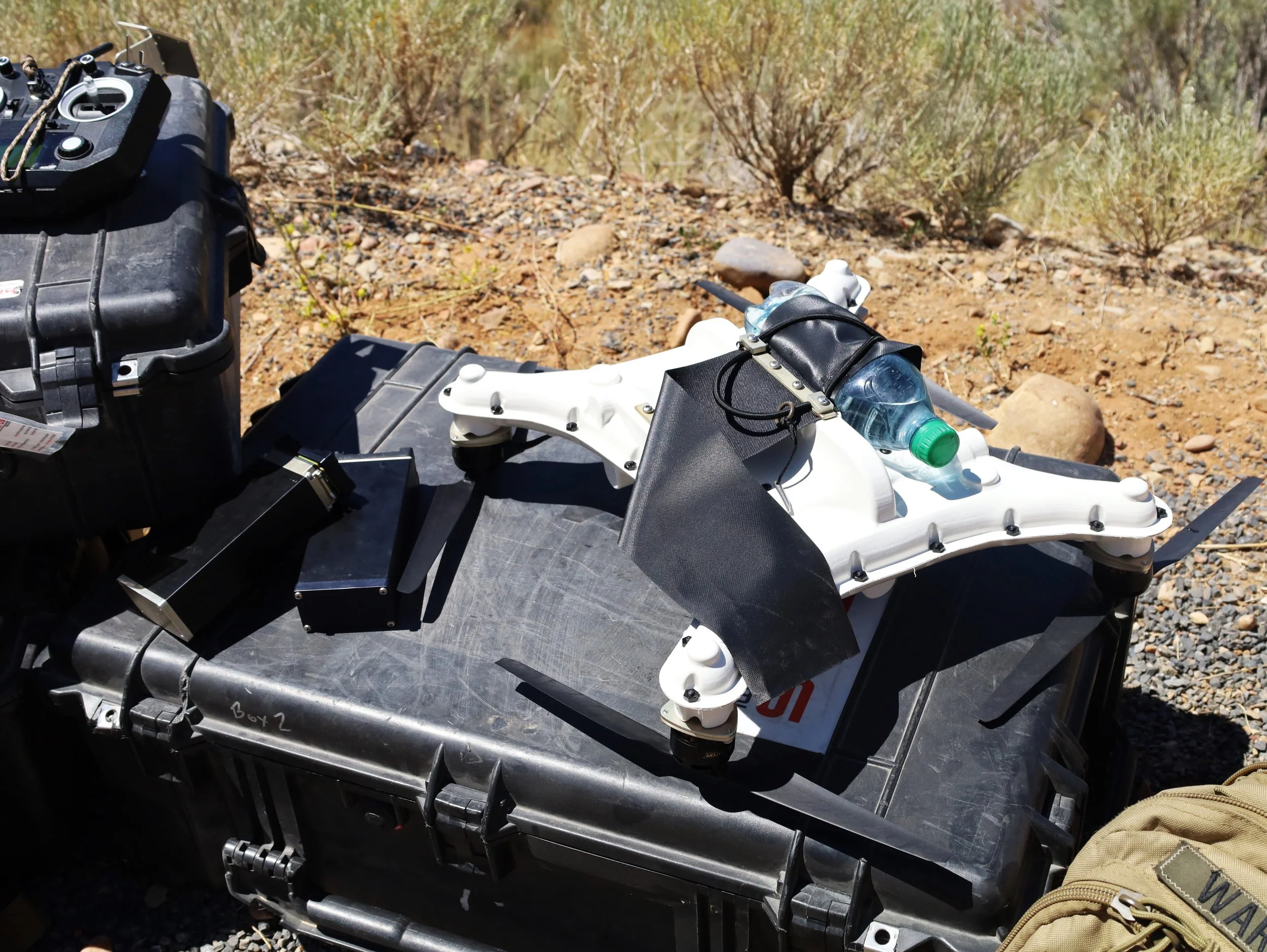

A drone with propellers, a black camera, and a water bottle secured on top, resting on a black equipment case outdoors in a desert area with dry bushes and rocks.

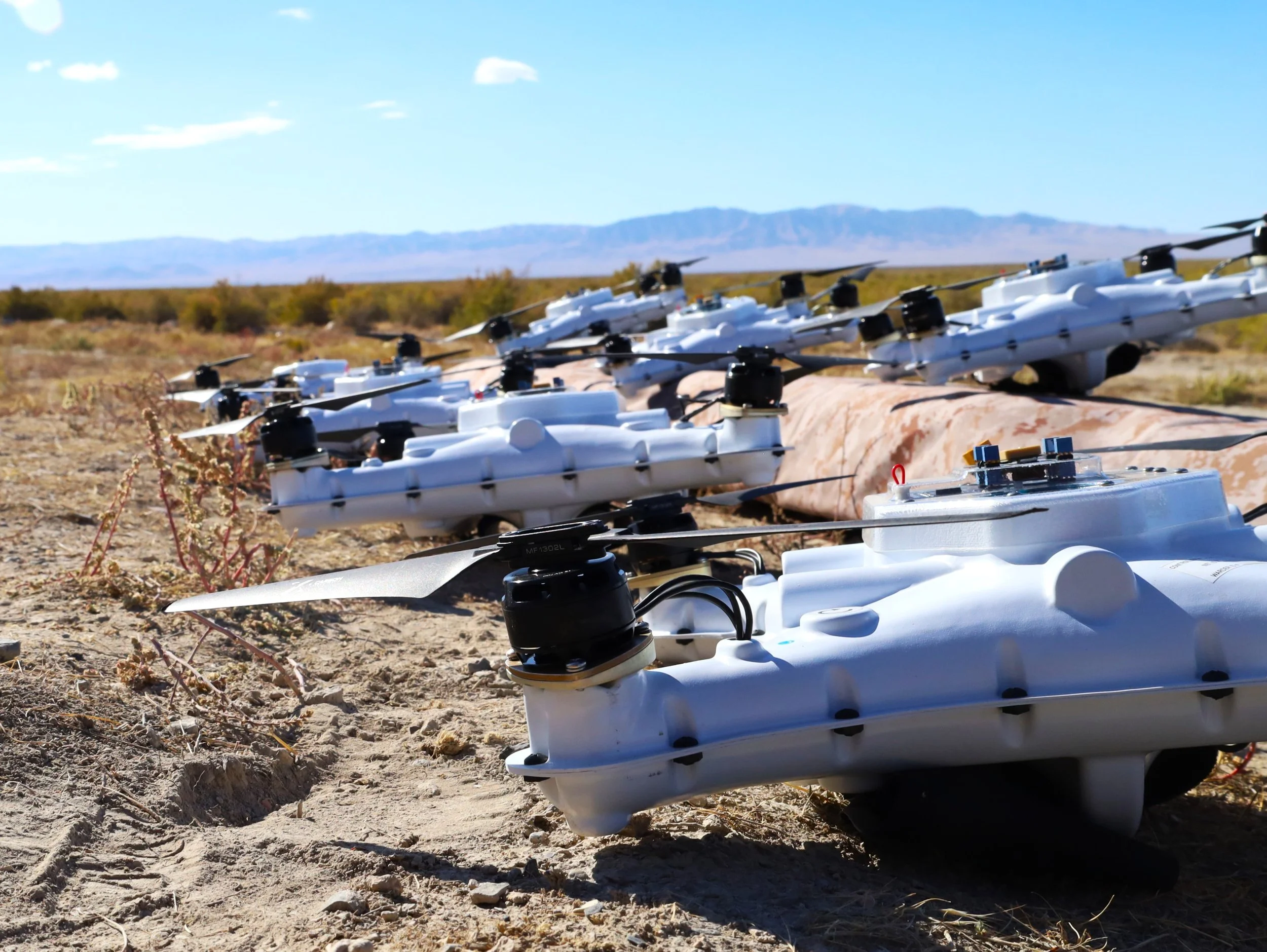

Multiple white drones with black propellers lined up on the ground in a desert landscape with mountains in the background under a blue sky.

UxV/35 Sturnus Munition Applique (Dropper UAS)

  • The Sturnus UAS system utilizes the common Kairos Autonomi UxV/35 flight stack installed into a Kydex frame with a payload dropper integrated into the bottom of the airframe.

  • Used to perform payload delivery missions, affect adjudicatable training maneuvers, and enable tactical autonomous mission training.

  • ~2km flight range (battery and payload dependent) with the ability to load up to 8 lbs (4 lbs/bay) into the two bottom payload dropper bays.

  • Modular design and construction enables the Sturnus to be easily repaired in the field or modified with optional UxV/35 modules to fit a wide array of mission requirements.

  • Can be configured/reconfigured using open-source flight software, such as MissionPlanner.

Specifications

Dimensions

Weight

Payload

4 lbs (2 kg)

Range

~1.6 mi (~2.6 km) battery & payload dependent

Max Speed

Ops Ceiling

41 ft/s (12.5 m/s)

1000 feet (305 m) AGL

Wind Speed

19 in (48 cm) Wide / 17 in (43 cm) Long / 7 in (18 cm) Tall

4.8 lbs (2.2 kg)

30 mph (48.8 kmh)
