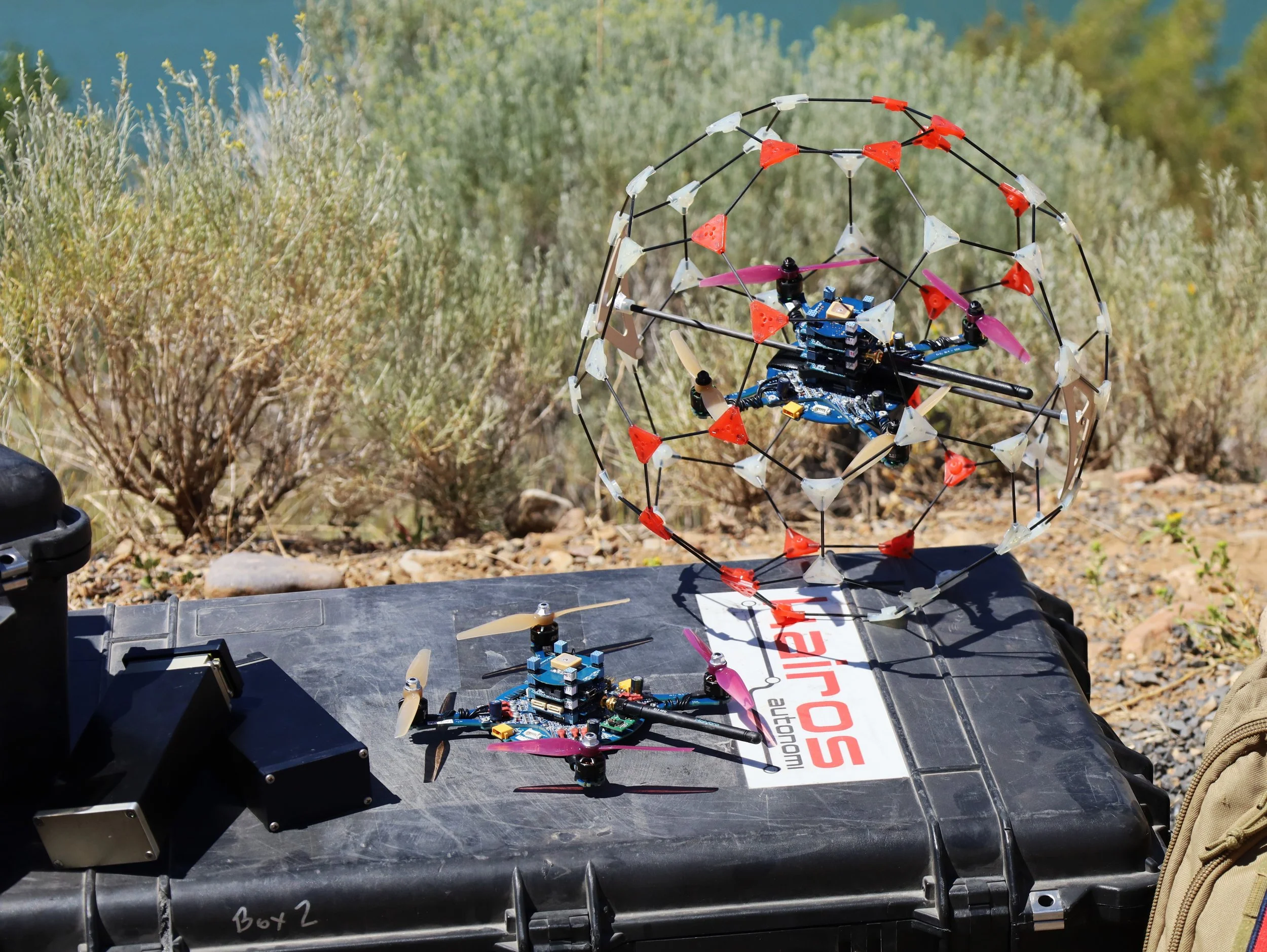

Two drones with protective spherical frames, one large and one small, placed on a black case outdoors with desert vegetation in the background.

UxV/35 Flight Basket Trainer UAS

Close-up of a blue quadcopter drone with four propellers, one yellow, two pink, and one beige, flying over a desert landscape with a blue sky background.

  • The Flight Basket UAS system utilizes the common Kairos Autonomi UxV/35 flight stack installed into a crash-resistant and collision-safe carbon-fiber polyhedron cage (the flight basket).

  • Inexpensive UAS system mean to be used as a flight training aid or for FPV IRL flight missions.

  • ~10 min flight time (battery dependent) with the ability to be flown Line of Sight or First Person View using Kairos FPV camera.

  • Modular design and construction enables the Flight Basket to be easily repaired in the field or modified with optional UxV/35 modules to fit a wide array of mission requirements.

  • Can be configured/reconfigured using open-source flight software, such as MissionPlanner.

Specifications

Dimensions

Weight

Flight Time

10+ minutes (w/1600 mAh battery)

FPV Camera

Kairos UxV/35 Camera & Transmitter (COTS Options may be installed)

Max Speed

Ops Ceiling

30 ft/s (9.4 m/s)

1000 feet (305 m) AGL

Wind Speed

13 in (33 cm) Sphere

1.7 lbs (.5 kg)

30 mph (48.8 kmh)
